Crossed Roller Bearings

Crossed Roller Bearings

Crossed Roller Bearings

Enviar consulta

Contenido

Enviar consulta

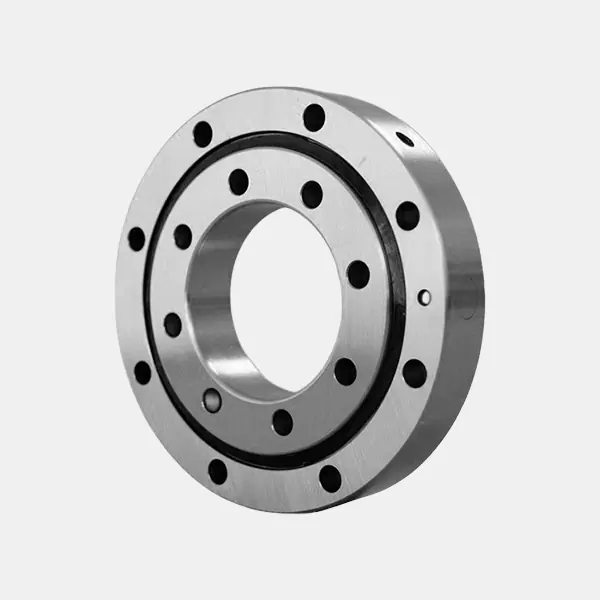

Rotary Table Bearing

YRT rotary table bearings
Bearing Number	inner diameter mm	outer diameter mm	hight mm
YRT50	50	126	30
YRT80	80	146	35
YRT100	100	185	38
YRT120	120	210	40
YRT150	150	240	40
YRT180	182	280	43
YRT200	200	300	45
YRT260	260	385	55
YRT325	325	450	60
YRT395	395	525	65
YRT460	460	600	70
YRT580	580	750	90
YRT650	650	870	122
YRT850	850	1095	124
YRT950	950	1200	132
YRT1030	1030	1300	145
YRT1200	1200	1490	164

YRTS Rotary Table Bearing
Bearing Number	d mm	D mm	H mm	H1 mm	D1 mm
YRTS200	200	300	45	30	15
YRTS260	260	385	55	36.5	18
YRTS325	325	450	60	40	20
YRTS395	395	525	65	42.5	20
YRTS460	460	600	70	46	22

YRTC Rotary Table Bearing
Bearing Number	Dimensions （mm）
Bearing Number	d	D	H	H1	H2	C
YRTC100	100	185	30	25	13	12
YRTC120	120	210	40	26	14	12
YRTC150	150	240	40	26	14	12
YRTC180	180	280	43	29	14	15
YRTC200	200	300	45	30	15	15
YRTC260	260	385	55	36.5	18.5	18
YRTC325	325	450	60	40	20	20
YRTC395	395	525	65	42.5	22.5	20
YRTC460	460	600	70	46	24	22
YRTC580	580	750	90	60	30	30
YRTC650	650	870	122	78	44	34
YRTC850	850	1095	124	80.5	43.5	37
YRTC1030	1030	1300	145	92.5	–	40

RA Series Crossed Roller Bearing

Bearing Number	Dimensions
Bearing Number	d mm	D mm	B mm
RA5008	50	66	8
RA6008	60	76	8
RA7008	70	86	8
RA8008	80	96	8
RA9008	90	106	8
RA 10008	100	116	8
RA 11008	110	126	8
RA 12008	120	136	8
RA 13008	130	146	8
RA 14008	140	156	8
RA 15008	150	166	8
RA 16013	160	186	13
RA 17013	170	196	13
RA 18013	180	206	13
RA 19013	190	216	13
RA 20013	200	226	13
RA5008C	50	66	8
RA6008C	60	76	8
RA7008C	70	86	8
RA8008C	80	96	8
RA9008C	90	106	8
RA 10008C	100	116	8
RA 11008C	110	126	8
RA 12008C	120	136	8
RA 13008C	130	146	8
RA 14008C	140	156	8
RA 15008C	150	166	8
RA 16013C	160	186	13
RA 17013C	170	196	13
RA 18013C	180	206	13
RA 19013C	190	216	13
RA 20013C	200	226	13

RB Series Crossed Roller Bearing

Bearing Number	Dimensions
Bearing Number	d mm	D mm	B mm
RB2008	20	36	8
RB2508	25	41	8
RB3010	30	55	10
RB3510	35	60	10
RB4010	40	65	10
RB4510	45	70	10
RB5013	50	80	13
RB6013	60	90	13
RB7013	70	100	13
RB8016	80	120	16
RB9016	90	130	16
RB10016	100	140	16
RB10020	100	150	20
RB11012	110	135	12
RB11015	110	145	15
RB11020	110	160	20
RB12016	120	150	16
RB12025	120	180	25
RB13015	130	160	15
RB13025	130	190	25
RB14016	140	175	16
RB14025	140	200	25
RB15013	150	180	13
RB15025	150	210	25
RB15030	150	230	30
RB16025	160	220	25
RB17020	170	220	20
RB18025	180	240	25
RB19025	190	240	25
RB20025	200	260	25
RB20030	200	280	30
RB20035	200	295	35
RB22025	220	280	25
RB24025	240	300	25
RB25025	250	310	25
RB25030	250	330	30
RB25040	250	355	40
RB30025	300	360	25
RB30035	300	395	35
RB30040	300	405	40
RB35020	350	400	20
RB40035	400	480	35
RB40040	400	510	40
RB45025	450	500	25
RB50025	500	550	25
RB50040	500	600	40
RB50050	500	625	50
RB60040	600	700	40
RB70045	700	815	45
RB80070	800	950	70
RB90070	900	1050	70
RB1000110	1000	1250	110
RB1250110	1250	1500	110

RE Series Crossed Roller Bearing

Bearing Number	Dimensions
Bearing Number	d mm	D mm	B mm
RE2008	20	36	8
RE2508	25	41	8
RE3010	30	55	10
RE3510	35	60	10
RE4010	40	65	10
RE4510	45	70	10
RE5013	50	80	13
RE6013	60	90	13
RE7013	70	100	13
RE8016	80	120	16
RE9016	90	130	16
RE10016	100	140	16
RE10020	100	150	20
RE11012	110	135	12
RE11015	110	145	15
RE11020	110	160	20
RE12016	120	150	16
RE12025	120	180	25
RE13015	130	160	15
RE13025	130	190	25
RE14016	140	175	16
RE14025	140	200	25
RE15013	150	180	13
RE15025	150	210	25
RE15030	150	230	30
RE16025	160	220	25
RE17020	170	220	20
RE18025	180	240	25
RE19025	190	240	25
RE20025	200	260	25
RE20030	200	280	30
RE20035	200	295	35
RE22025	220	280	25
RE24025	240	300	25
RE25025	250	310	25
RE25030	250	330	30
RE25040	250	355	40
RE30025	300	360	25
RE30035	300	395	35
RE30040	300	405	40
RE35020	350	400	20

RU Series Crossed Roller Bearing

Bearing Number	Dimensions
Bearing Number	d mm	D mm	B mm
RU42	20	70	12
RU66	35	95	15
RU85	55	120	15
RU124(G)	80	165	22
RU124X	80	165	22
RU148(G)	90	210	25
RU148X	90	210	25
RU178(G)	115	240	28
RU178X	115	240	28
RU228(G)	160	295	35
RU228X	160	295	35
RU297(G)	210	380	40
RU297X	210	380	40
RU445(G)	350	540	45
RU445(G)	350	540	45

SX Series Crossed Roller Bearing

Bearing Number	Dimensions
Bearing Number	d mm	Dmm	Roller pitch circle diameter dp (mm)	B mm
SX011814	70	90	80	10
SX011818	90	115	102	13
SX011820	100	125	112	13
SX011824	120	150	135	16
SX011828	140	175	157	18
SX011832	160	200	180	20
SX011836	180	225	202	22
SX011840	200	250	225	24
SX011848	240	300	270	28
SX011860	300	380	340	38
SX011868	340	420	380	38
SX011880	400	500	450	46
SX0118/500	500	620	560	56

CRBH Series Crossed Roller Bearing

Bearing Number		Dimensions
1	2	d mm	D mm	B mm
CRBH 208 A	CRBH 208 AUU	20	36	8
CRBH 258 A	CRBH 258 AUU	25	41	8
CRBH 3010 A	CRBH 3010 AUU	30	55	10
CRBH 3510 A	CRBH 3510 AUU	35	60	10
CRBH 4010 A	CRBH 4010 AUU	40	65	10
CRBH 4510 A	CRBH 4510 AUU	45	70	10
CRBH 5013 A	CRBH 5013 A UU	50	80	13
CRBH 6013 A	CRBH 6013 A UU	60	90	13
CRBH 7013 A	CRBH 7013 A UU	70	100	13
CRBH 8016 A	CRBH 8016 A UU	80	120	16
CRBH 9016 A	CRBH 9016 A UU	90	130	16
CRBH 10020 A	CRBH 10020 A UU	100	150	20
CRBH 11020 A	CRBH 11020 A UU	110	160	20
CRBH 12025 A	CRBH 12025 A UU	120	180	25
CRBH 13025 A	CRBH 13025 A UU	130	190	25
CRBH 14025 A	CRBH 14025 A UU	140	200	25
CRBH 15025 A	CRBH 15025 A UU	150	210	25
CRBH 20025 A	CRBH 20025 A UU	200	260	25
CRBH 25025 A	CRBH 25025 A UU	250	310	25

XSU Series Crossed Roller Bearing

Bearing Number	Dimensions
Bearing Number	inner ring	outer ring	width	Installing hole	Chamfer
XSU080168	130	205	25.4	12	1.1
XSU080188	150	225	25.4	16	1.1
XSU080218	180	255	25.4	20	1.1
XSU080258	220	295	25.4	24	1.5
XSU080318	280	355	25.4	28	1.5
XSU080398	360	435	25.4	36	2
XSU140414	344	484	56	24	2
XSU140544	474	614	56	32	2.5
XSU140644	574	714	56	36	2.5
XSU140744	674	814	56	40	3
XSU140844	744	914	56	40	3
XSU140944	874	1014	56	44	3
XSU141094	1024	1164	56	48	4

CRB CRBC Series Crossed Roller

Bearing Number		Dimensions
With cage	Full Complement	d mm	D mm	B mm
CRBC3010	CRB3010	30	55	10
CRBC4010	CRB4010	40	65	10
CRBC5013	CRB5013	50	80	13
CRBC6013	CRB6013	60	90	13
CRBC7013	CRB7013	70	100	13
CRBC8016	CRB8016	80	120	16
CRBC9016	CRB9016	90	130	16
CRBC10020	CRB10020	100	150	20
CRBC11020	CRB11020	110	160	20
CRBC12025	CRB12025	120	180	25
CRBC13025	CRB13025	130	190	25
CRBC14025	CRB14025	140	200	25
CRBC15025	CRB15025	150	210	25
CRBC15030	CRB15030	150	230	30
CRBC20025	CRB20025	200	260	25
CRBC20030	CRB20030	200	280	30
CRBC20035	CRB20035	200	295	35
CRBC25025	CRB25025	250	310	25
CRBC30025	CRB30025	300	360	25
CRBC30035	CRB30035	300	395	35
CRBC30040	CRB30040	300	405	40
CRBC40035	CRB40035	400	480	35
CRBC40040	CRB40040	400	510	40
CRBC40070	CRB40070	400	580	70
CRBC50040	CRB50040	500	600	40
CRBC50050	CRB50050	500	625	50
CRBC50070	CRB50070	500	680	70
CRBC60040	CRB60040	600	700	40
CRBC60070	CRB60070	600	780	70
CRBC600120	CRB600120	600	870	120
CRBC70045	CRB70045	700	815	12
CRBC70070	CRB70070	700	880	7
CRBC700150	CRB700150	700	1020	150
CRBC80070	CRB80070	800	950	70
CRBC800100	CRB800100	800	1030	100

XR JR Series Crossed Roller Bearing

Bearing Number	Dimensions
Bearing Number	d mm	D mm	B mm
XR490651	203.2	279.4	31.75
XR678052	330.2	457.2	63.5
XR766051	457.2	609.6	63.5
XR820060	580	760	80
XR855053	685.8	914.4	79.38
XR882055	901.7	1117.6	82.55
XR897051	1549.4	1828.8	101.6
JXR637050	300	400	37
JXR652050	310	425	45
JXR699050	370	495	50

CRBS slim thin section crossed

Bearing Model Number				Dimensions
With Cage Open Type	With Separator Seald Type	Full complement		Dimensions
With Cage Open Type	With Separator Seald Type	Open Type	Sealed Type	d mm	D mm	B mm
CRBS508	CRBS508AUU	CRBS508V	CRBS508VUU	50	66	8
CRBS608	CRBS608AUU	CRBS608V	CRBS608VUU	60	76	8
CRBS708	CRBS708AUU	CRBS708V	CRBS708VUU	70	86	8
CRBS808	CRBS808AUU	CRBS808V	CRBS808VUU	80	96	8
CRBS908	CRBS908AUU	CRBS908V	CRBS908VUU	90	106	8
CRBS1008	CRBS1008AUU	CRBS1008V	CRBS1008VUU	100	116	8
CRBS1108	CRBS1108AUU	CRBS1108V	CRBS1108VUU	110	126	8
CRBS1208	CRBS1208AUU	CRBS1208V	CRBS1208VUU	120	136	8
CRBS1308	CRBS1308AUU	CRBS1308V	CRBS1308VUU	130	146	8
CRBS1408	CRBS1408AUU	CRBS1408V	CRBS1408VUU	140	156	8
CRBS1508	CRBS1508AUU	CRBS1508V	CRBS1508VUU	150	166	8
CRBS16013	CRBS16013AUU	CRBS16013V	CRBS16013VUU	160	186	13
CRBS17013	CRBS17013AUU	CRBS17013V	CRBS17013VUU	170	196	13
CRBS18013	CRBS18013AUU	CRBS18013V	CRBS18013VUU	180	206	13
CRBS19013	CRBS19013AUU	CRBS19013V	CRBS19013VUU	190	216	13
CRBS20013	CRBS20013AUU	CRBS20013V	CRBS20013VUU	200	226	13

CRBF full compeletment crossed

Bearing Model Number		Dimensions
Open Type	Sealed Type	d mm	D mm	B mm
CRBF108AT	CRBF108ATUU	10	52	8
CRBF2012AT	CRBF2012ATUU	20	70	12
CRBF2512AT	CRBF2512ATUU	25	80	12
CRBF3515AT	CRBF3515ATUU	35	95	15
CRBF5515AT	CRBF5515ATUU	55	120	15
CRBF8022AT	CRBF8022ATUU	80	165	22
CRBF8022A	CRBF8022AUU	80	165	22
CRBF8022AD	CRBF8022ADUU	80	165	22
CRBF9025AT	CRBF9025ATUU	90	210	25
CRBF9025A	CRBF9025AUU	90	210	25
CRBF9025AD	CRBF9025ADUU	90	210	25
CRBF11528AT	CRBF11528ATUU	115	240	28
CRBF11528A	CRBF11528AUU	115	240	28
CRBF11528AD	CRBF11528ADUU	115	240	28
